Drafting & Rendering for Television

Below are a few samples of things I’ve created as a Set Designer and Art Director on various TV shows. My 3D models and 2D drafting are all done in Vectorworks, and rendered in Renderworks with final touches in Photoshop.

PALM ROYALE (AppleTV+)

INT CEIL CHAPMAN STUDIO:






Set in 1969, Palm Royale is currently streaming on AppleTV+ and follows Kristen Wiig’s Maxine, an ambitious woman aspiring to cross the line between the haves and have-nots to secure her seat at America's most exclusive, fashionable, and treacherous table: Palm Beach high society.

More Palm Royale content coming soon!

GAME SHOWS & VARIETY

Use the arrows or click on thumbnails to see more images.

Vectorworks concept illustration showing John Janavs' production design for a new outdoor garden set in season 5 of NBC’s Hollywood Game Night.

Vectorworks construction drawing for a new set in season 5 of NBC’s Hollywood Game Night.

Vectorworks digital rendering of production design concept for an interview area that debuted in the second season of NBC’s World of Dance. Production Design by D Before E.

This spotting plan shows the overview of the two main competition stages, which were developed as hybrid 2D+3D Vectorworks files. This means that as things were adjusted in the simple 2D plan, the complex 3D model would also update, which kept everything cohesive as we explored multiple design iterations.

Concept rendering showing the new restaurant design and exterior for Hell’s Kitchen S19, which moved to Las Vegas for the first time.

Production design by John Janavs; Art Direction by Robert Fry. Copyright FOX.

Concept rendering showing the exterior restaurant entrance for Hell’s Kitchen S19.

Concept rendering for a “Bakery” confessional set on FOX's Hell's Kitchen (S17).

Vectorworks concept rendering for the “Black Jacket Lounge” on S18 of Hell's Kitchen.

Construction drafting of a game unit for season 18 of FOX's Hell's Kitchen. Created in Vectorworks.

Initial concept rendering for a family-based cooking show. Production design by John Janavs.

Concept rendering for Wargaming.net League's World of Tanks show. Production Design by Bruce Ryan.

Groundplan for outdoor concert stage near NYC's Times Square, for live music performances in conjunction with the premiere of MTV's Total Request Live reboot. This required close coordination with the city to make sure all safety codes were followed. Design by D Before E.

Concept rendering showing design idea for a dance show pilot. Created start to finish in Vectorworks with one day's work.
Production design by D Before E.

Chris D'Elia: Incorrigible (stand-up comedy filmed at the Wiltern Theater). Vectorworks & Photoshop rendering.
Available here on Netflix. Production Design by Bruce Ryan.

MOON KNIGHT (Marvel Studios)

Set Designer (Additional Photography)







Currently streaming on Disney+, Moon Knight follows Steven Grant (Oscar Isaac), a mild-mannered gift-shop employee who becomes plagued with blackouts and memories of another life. Steven discovers he has dissociative identity disorder and shares a body with mercenary Marc Spector. Steve/Marc must navigate their complex identities while thrust into a deadly mystery among the powerful gods of Egypt.

MR. MAYOR (NBC)





Above are drafting examples from my time as a Set Designer on NBC’s sitcom Mr. Mayor (streaming on Peacock).

PLANET OF THE APPS (Apple)

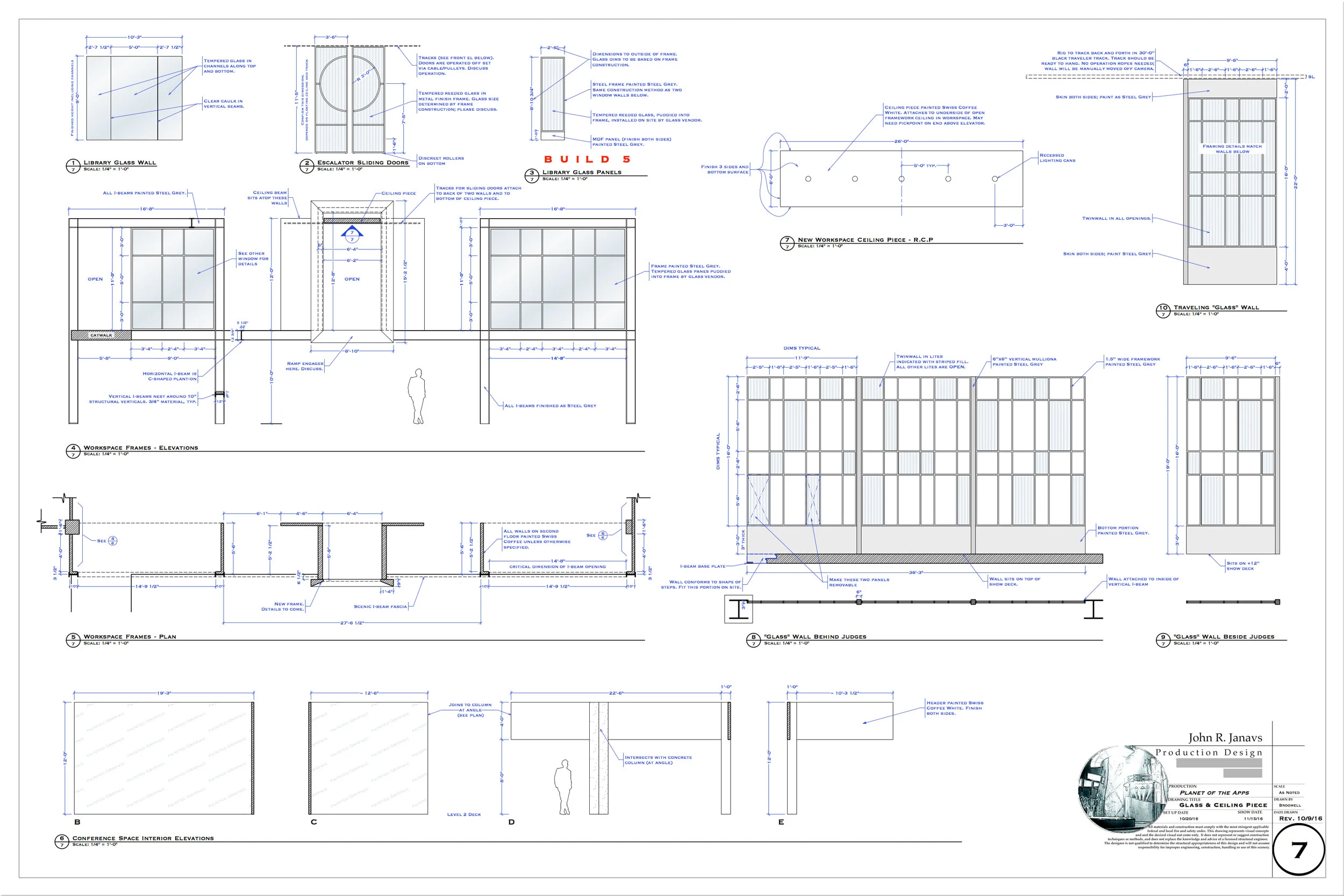

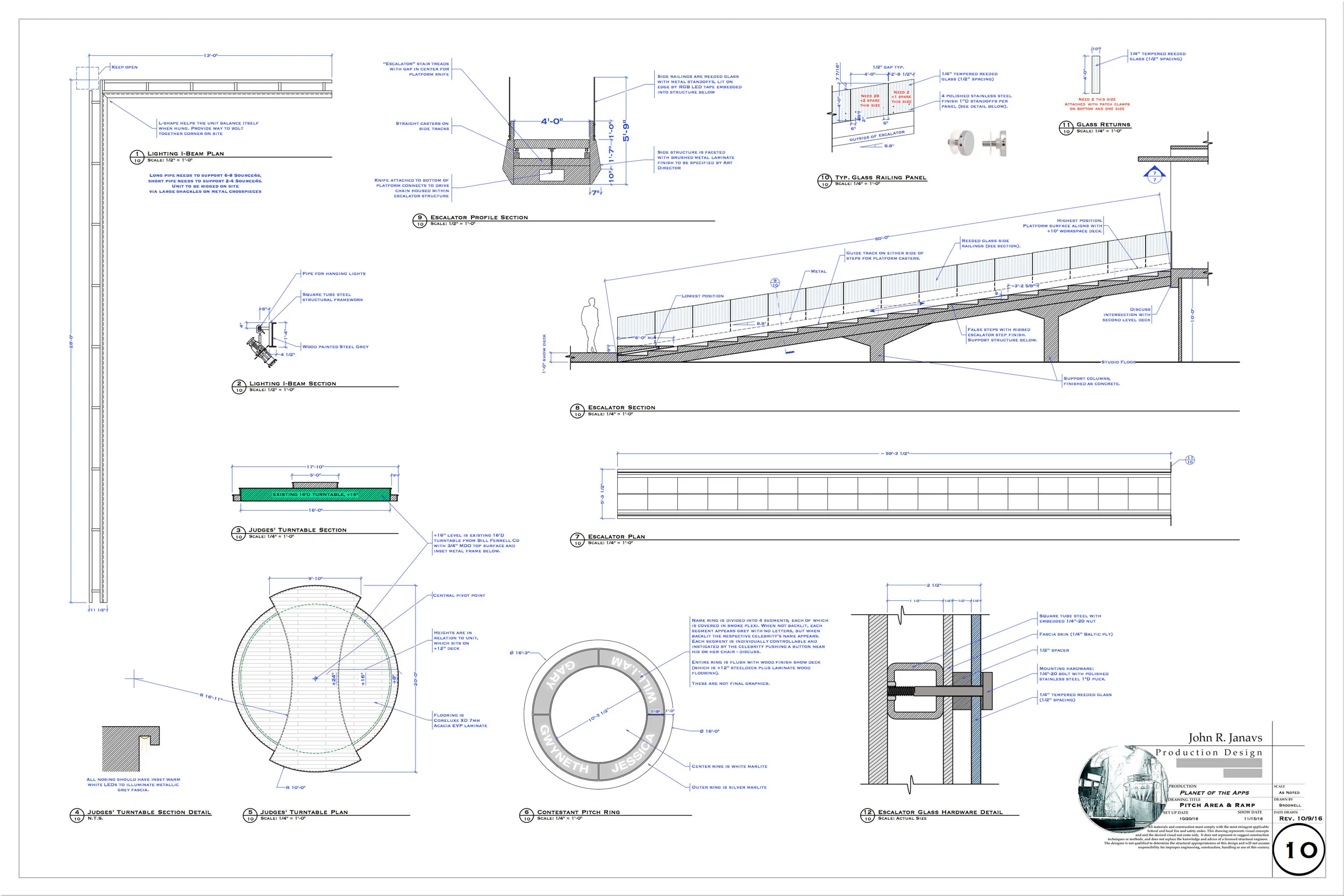

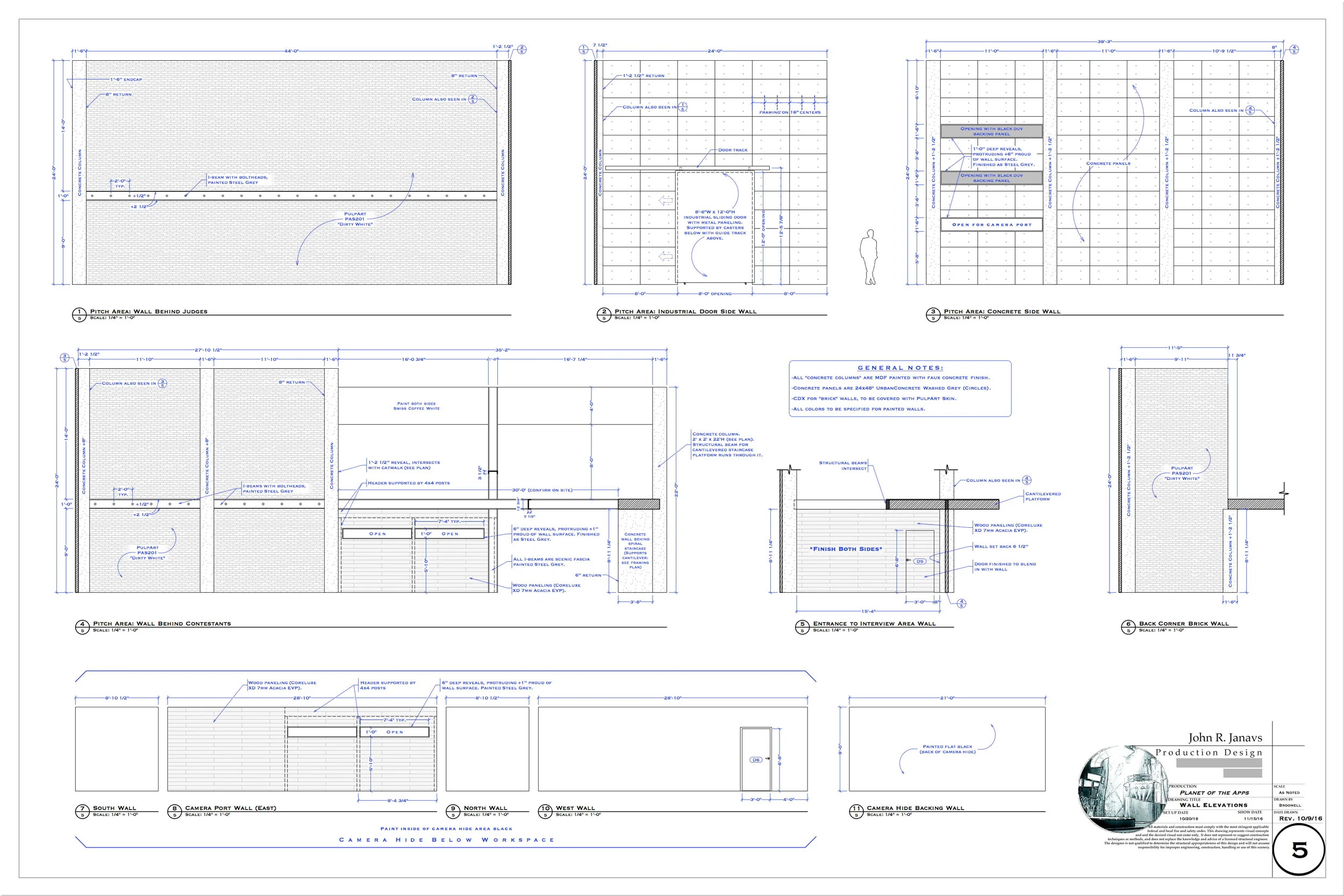

These seven concept illustrations visualized John Janavs' production design for Apple's Planet of the Apps, where developers pitch their ideas to celebrity advisors with the chance to meet with venture capitalists to secure real funding. These were modeled, textured, list, and rendered in Vectorworks. Drafting and set photos below. © 2016 Apple
